Stage 3 — Reward Model

To do classic RLHF (PPO) we need something that scores a response with a single number: higher = more preferred. That's the reward model. I build it by putting a tiny scalar head on top of the SFT backbone and training it on human preference pairs with the Bradley-Terry loss — the same recipe as InstructGPT.

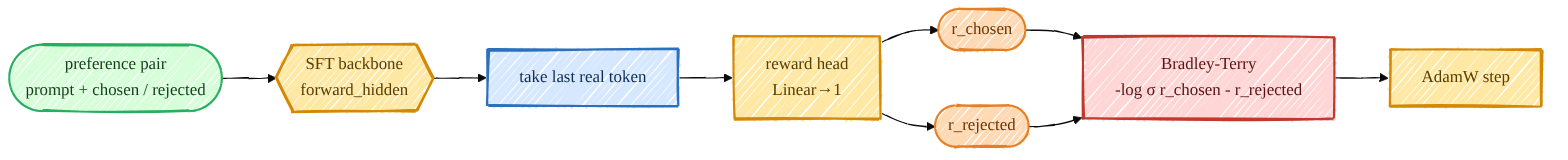

Mermaid source (live, editable)

flowchart LR
    P([preference pair<br/>prompt + chosen / rejected]):::data --> BB{{SFT backbone<br/>forward_hidden}}:::model
    BB --> LT[take last real token]:::proc
    LT --> RH[reward head<br/>Linear→1]:::model
    RH --> RC([r_chosen]):::rl
    RH --> RR([r_rejected]):::rl
    RC --> BT[Bradley-Terry<br/>-log σ r_chosen - r_rejected]:::loss
    RR --> BT
    BT --> UPD[AdamW step]:::model
    classDef data fill:#d6ffd9,stroke:#27ae60,stroke-width:2px,color:#143d1a;
    classDef proc fill:#d6e8ff,stroke:#2c6fbb,stroke-width:2px,color:#0d2c52;
    classDef model fill:#ffe8a3,stroke:#d48806,stroke-width:2px,color:#5a3d00;
    classDef rl fill:#ffd9b3,stroke:#e67e22,stroke-width:2px,color:#6b3500;
    classDef loss fill:#ffd6d6,stroke:#c0392b,stroke-width:2px,color:#5c1212;

The model: a scalar head on the backbone

RewardModel wraps a Transformer, drops the lm_head, and reads the reward off the last real token's hidden state (the InstructGPT convention). Because attention is causal, that last token has seen the whole sequence and never attends to the right-padding after it — so we need no attention mask:

class RewardModel(nn.Module):
    def __init__(self, transformer):
        self.transformer = transformer
        self.reward_head = nn.Linear(transformer.lm_head.in_features, 1, bias=False)

    def forward(self, idx, seq_lengths=None):
        rewards = self.reward_head(self.transformer.forward_hidden(idx)).squeeze(-1)  # (B, T)
        return gather_last(rewards, seq_lengths)   # reward at the last real token -> (B,)

gather_last just indexes rewards[i, seq_lengths[i]-1].

The objective: Bradley-Terry

bradley_terry_loss pushes the chosen reward above the rejected one. That's the entire training signal:

def bradley_terry_loss(chosen_rewards, rejected_rewards):
    return -F.logsigmoid(chosen_rewards - rejected_rewards).mean()

preference_accuracy — the fraction of pairs where r_chosen > r_rejected — is the metric I actually watch.

The trainer

train_reward.py initializes the backbone from sft.pt, then for each batch runs the chosen and rejected sequences through the model in a single forward (concatenated to 2B), splits the rewards, and applies the loss:

ids  = torch.cat([batch["chosen_ids"], batch["rejected_ids"]], dim=0)
lens = torch.cat([batch["chosen_len"], batch["rejected_len"]], dim=0)
rewards = rm(ids, seq_lengths=lens).float()
chosen_r, rejected_r = rewards[:B], rewards[B:]
loss = bradley_terry_loss(chosen_r, rejected_r)

Pairs come from get_preference_iterator, which right-pads each batch (safe under causal attention) and tracks the true length of each side.

Run it

PYTHONPATH=. python scripts/train_reward.py
PYTHONPATH=. torchrun --standalone --nproc_per_node=2 scripts/train_reward.py
# tune: --lr 1e-5 --max_len 768

What the numbers mean

• loss — Bradley-Terry; starts at -log σ(0) = 0.693 (chance) and drops as the gap widens.
• train_acc / test_acc — preference accuracy. On clean fixtures it goes to 1.0; on real, noisy HH-RLHF / UltraFeedback expect roughly 0.65–0.75 — that's normal, human preferences are noisy.
• margin — mean r_chosen − r_rejected; a useful "is it still separating them" signal.

Saved to /ephemeral/ckpts/reward.pt; PPO loads it with load_reward_model when --reward_source rm.

➡️ Next: Stage 5 — PPO (which consumes this), or the RM-free path: DPO.
